Exchange mailbox Controleren en repareren
Voor het controleren en repareren van een mailbox mag deze niet in gebruik zijn. Het stoppen van de mailbox gaat als volgt:Start de exchange system manager
Navigeer naar: [Administrative Groups], [First Administrative Group], [Servers], [ Uw mailserver], [First Storage Group]
* Als [Administrative groups] niet zichtbaar is: Klik rechts op [... Organization (Exchange)], kies vervolgens voor properties (eigenschappen) en zet de vinkjes aan voor [Display routing groups] en [Display administrative groups].

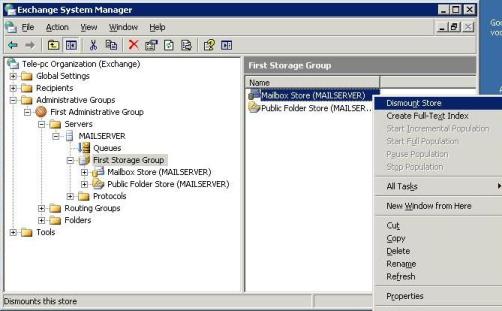

Klik met de rechter-muis-knop op de mailbox die u wilt controleren en kies [Dismount Store]
Controleren
ESEUTIL /k
M:\PROGRA~1\Exchsrvr\bin>eseutil /k m:\progra~1\exchsrvr\mdbdata\priv1.edb
Microsoft(R) Exchange Server Database Utilities
Version 6.5
Copyright (C) Microsoft Corporation. All Rights Reserved.
Initiating CHECKSUM mode...
Database: m:\progra~1\exchsrvr\mdbdata\priv1.edb
Streaming File: m:\progra~1\exchsrvr\mdbdata\priv1.STM
Temp. Database: TEMPCHKSUM5832.EDB
File: m:\progra~1\exchsrvr\mdbdata\priv1.edb
Checksum Status (% complete)
0 10 20 30 40 50 60 70 80 90 100
|----|----|----|----|----|----|----|----|----|----|
ERROR: page 207276 checksum failed ( 0x0ad1752e5a330af0 / 0x4ae14ae15a332ff0 )
WARNING: page 255190 checksum verification failed but the corruption ( bit 9933 ) can be corrected
ERROR: page 303167 checksum failed ( 0x299e5661cf9ec39d / 0x60ae60aecf9ee69d )
ERROR: page 350803 checksum failed ( 0x11d811d83d12a5ba / 0x3d593d593d12a9ba )
ERROR: page 397330 checksum failed ( 0x6e916e9134369cff / 0x5f925f92343695ff )
412418 pages seen
4 bad checksums
1 correctable checksums
1338 uninitialized pages
0 wrong page numbers
0x235123 highest dbtime (pgno 0xd4)
25777 reads performed
1611 MB read
79 seconds taken
20 MB/second
68960125 milliseconds used
2675 milliseconds per read
4797 milliseconds for the slowest read
0 milliseconds for the fastest read
File: m:\progra~1\exchsrvr\mdbdata\priv1.STM
Checksum Status (% complete)
0 10 20 30 40 50 60 70 80 90 100
|----|----|----|----|----|----|----|----|----|----|
...................................................
29184 pages seen
0 bad checksums
2302 uninitialized pages
Operation terminated with error -1206 (JET_errDatabaseCorrupted, Non database file or corrupted db) after 171.562 seconds.
Microsoft(R) Exchange Server Database Utilities
Version 6.5
Copyright (C) Microsoft Corporation. All Rights Reserved.
Initiating CHECKSUM mode...
Database: m:\progra~1\exchsrvr\mdbdata\priv1.edb
Streaming File: m:\progra~1\exchsrvr\mdbdata\priv1.STM
Temp. Database: TEMPCHKSUM5832.EDB
File: m:\progra~1\exchsrvr\mdbdata\priv1.edb
Checksum Status (% complete)
0 10 20 30 40 50 60 70 80 90 100
|----|----|----|----|----|----|----|----|----|----|
ERROR: page 207276 checksum failed ( 0x0ad1752e5a330af0 / 0x4ae14ae15a332ff0 )
WARNING: page 255190 checksum verification failed but the corruption ( bit 9933 ) can be corrected
ERROR: page 303167 checksum failed ( 0x299e5661cf9ec39d / 0x60ae60aecf9ee69d )
ERROR: page 350803 checksum failed ( 0x11d811d83d12a5ba / 0x3d593d593d12a9ba )
ERROR: page 397330 checksum failed ( 0x6e916e9134369cff / 0x5f925f92343695ff )
412418 pages seen
4 bad checksums
1 correctable checksums
1338 uninitialized pages
0 wrong page numbers
0x235123 highest dbtime (pgno 0xd4)
25777 reads performed
1611 MB read
79 seconds taken
20 MB/second
68960125 milliseconds used
2675 milliseconds per read
4797 milliseconds for the slowest read
0 milliseconds for the fastest read
File: m:\progra~1\exchsrvr\mdbdata\priv1.STM
Checksum Status (% complete)
0 10 20 30 40 50 60 70 80 90 100
|----|----|----|----|----|----|----|----|----|----|
...................................................
29184 pages seen
0 bad checksums
2302 uninitialized pages
Operation terminated with error -1206 (JET_errDatabaseCorrupted, Non database file or corrupted db) after 171.562 seconds.
Repareren
ESEUTIL /p
M:\PROGRA~1\Exchsrvr\bin>eseutil /p m:\progra~1\exchsrvr\mdbdata\priv1.edb
Microsoft(R) Exchange Server Database Utilities
Version 6.5
Copyright (C) Microsoft Corporation. All Rights Reserved.
Initiating REPAIR mode...
Database: m:\progra~1\exchsrvr\mdbdata\priv1.edb
Streaming File: m:\progra~1\exchsrvr\mdbdata\priv1.STM
Temp. Database: TEMPREPAIR4820.EDB
Checking database integrity.
Scanning Status (% complete)
0 10 20 30 40 50 60 70 80 90 100
|----|----|----|----|----|----|----|----|----|----|
...................................................
Scanning the database.
Scanning Status (% complete)
0 10 20 30 40 50 60 70 80 90 100
|----|----|----|----|----|----|----|----|----|----|
...................................................
Repairing damaged tables.
Scanning Status (% complete)
0 10 20 30 40 50 60 70 80 90 100
|----|----|----|----|----|----|----|----|----|----|
.........................
Deleting unicode fixup table.
..........................
Repair completed. Database corruption has been repaired!
Note:
It is recommended that you immediately perform a full backup
of this database. If you restore a backup made before the
repair, the database will be rolled back to the state
it was in at the time of that backup.
Operation completed successfully with 595 (JET_wrnDatabaseRepaired, Database corruption has been repaired) after 49224.532 seconds.
Microsoft(R) Exchange Server Database Utilities
Version 6.5
Copyright (C) Microsoft Corporation. All Rights Reserved.
Initiating REPAIR mode...
Database: m:\progra~1\exchsrvr\mdbdata\priv1.edb
Streaming File: m:\progra~1\exchsrvr\mdbdata\priv1.STM
Temp. Database: TEMPREPAIR4820.EDB
Checking database integrity.
Scanning Status (% complete)
0 10 20 30 40 50 60 70 80 90 100
|----|----|----|----|----|----|----|----|----|----|
...................................................
Scanning the database.
Scanning Status (% complete)
0 10 20 30 40 50 60 70 80 90 100
|----|----|----|----|----|----|----|----|----|----|
...................................................
Repairing damaged tables.
Scanning Status (% complete)
0 10 20 30 40 50 60 70 80 90 100
|----|----|----|----|----|----|----|----|----|----|
.........................
Deleting unicode fixup table.
..........................
Repair completed. Database corruption has been repaired!
Note:
It is recommended that you immediately perform a full backup
of this database. If you restore a backup made before the
repair, the database will be rolled back to the state
it was in at the time of that backup.
Operation completed successfully with 595 (JET_wrnDatabaseRepaired, Database corruption has been repaired) after 49224.532 seconds.
Voltooien
ESEUTIL -d
M:\PROGRA~1\Exchsrvr\bin>eseutil /d m:\progra~1\exchsrvr\mdbdata\priv1.edb
Microsoft(R) Exchange Server Database Utilities
Version 6.5
Copyright (C) Microsoft Corporation. All Rights Reserved.
Initiating DEFRAGMENTATION mode...
Database: m:\progra~1\exchsrvr\mdbdata\priv1.edb
Streaming File: m:\progra~1\exchsrvr\mdbdata\priv1.STM
Temp. Database: TEMPDFRG4896.EDB
Temp. Streaming File: TEMPDFRG4896.STM
Defragmentation Status (% complete)
0 10 20 30 40 50 60 70 80 90 100
|----|----|----|----|----|----|----|----|----|----|
...................................................
Moving 'TEMPDFRG4896.EDB' to 'm:\progra~1\exchsrvr\mdbdata\priv1.edb'... DONE!
Moving 'TEMPDFRG4896.STM' to 'm:\progra~1\exchsrvr\mdbdata\priv1.stm'... DONE!
Note:
It is recommended that you immediately perform a full backup
of this database. If you restore a backup made before the
defragmentation, the database will be rolled back to the state
it was in at the time of that backup.
Operation completed successfully in 2066.375 seconds.
Microsoft(R) Exchange Server Database Utilities
Version 6.5
Copyright (C) Microsoft Corporation. All Rights Reserved.
Initiating DEFRAGMENTATION mode...
Database: m:\progra~1\exchsrvr\mdbdata\priv1.edb
Streaming File: m:\progra~1\exchsrvr\mdbdata\priv1.STM
Temp. Database: TEMPDFRG4896.EDB
Temp. Streaming File: TEMPDFRG4896.STM
Defragmentation Status (% complete)
0 10 20 30 40 50 60 70 80 90 100
|----|----|----|----|----|----|----|----|----|----|
...................................................
Moving 'TEMPDFRG4896.EDB' to 'm:\progra~1\exchsrvr\mdbdata\priv1.edb'... DONE!
Moving 'TEMPDFRG4896.STM' to 'm:\progra~1\exchsrvr\mdbdata\priv1.stm'... DONE!
Note:
It is recommended that you immediately perform a full backup
of this database. If you restore a backup made before the
defragmentation, the database will be rolled back to the state
it was in at the time of that backup.
Operation completed successfully in 2066.375 seconds.
ISInteg -fix
M:\PROGRA~1\Exchsrvr\bin>isinteg -s mailserver -fix -test alltests
Databases for server mailserver:
Only databases marked as Offline can be checked
Index Status Database-Name
Storage Group Name: First Storage Group
1 Offline Mailbox Store (MAILSERVER)
2 Online Public Folder Store (MAILSERVER)
Enter a number to select a database or press Return to exit.
1
You have selected First Storage Group / Mailbox Store (MAILSERVER).
Continue?(Y/N)y
Test Categorization Tables result: 0 error(s); 0 warning(s); 0 fix(es); 0 row(s); time: 0h:0m:1s
Test Restriction Tables result: 0 error(s); 0 warning(s); 0 fix(es); 0 row(s); time: 0h:0m:1s
Test Search Folder Links result: 0 error(s); 0 warning(s); 0 fix(es); 0 row(s);time: 0h:0m:0s
Test Global result: 0 error(s); 0 warning(s); 0 fix(es); 1 row(s); time: 0h:0m:0s
Test Delivered To result: 0 error(s); 0 warning(s); 0 fix(es); 3 row(s); time: 0h:0m:0s
Test Search Queue result: 0 error(s); 0 warning(s); 0 fix(es); 0 row(s); time: 0h:0m:0s
Test Timed Events result: 0 error(s); 0 warning(s); 0 fix(es); 0 row(s); time: 0h:0m:0s
Test reference table construction result: 0 error(s); 0 warning(s); 0 fix(es); 0 row(s); time: 0h:0m:23s
Test Folder result: 0 error(s); 0 warning(s); 6 fix(es); 430 row(s); time: 0h:1m:14s
Test Deleted Folders result: 0 error(s); 0 warning(s); 0 fix(es); 0 row(s); time: 0h:0m:0s
Test Message result: 0 error(s); 6 warning(s); 4 fix(es); 17021 row(s); time: 0h:0m:21s
Test Attachment result: 0 error(s); 0 warning(s); 0 fix(es); 9217 row(s); time:0h:0m:2s
Test Mailbox result: 0 error(s); 0 warning(s); 0 fix(es); 13 row(s); time: 0h:0m:0s
Test Receive Folder result: 0 error(s); 0 warning(s); 0 fix(es); 50 row(s); time: 0h:0m:0s
Test Oof History result: 0 error(s); 0 warning(s); 0 fix(es); 0 row(s); time: 0h:0m:0s
Test Per-User Read result: 0 error(s); 0 warning(s); 0 fix(es); 0 row(s); time:0h:0m:0s
Test special folders result: 0 error(s); 0 warning(s); 0 fix(es); 0 row(s); time: 0h:0m:0s
Test Message Tombstone result: 0 error(s); 0 warning(s); 0 fix(es); 3 row(s); time: 0h:0m:0s
Test Folder Tombstone result: 0 error(s); 0 warning(s); 0 fix(es); 0 row(s); time: 0h:0m:0s
Test reference count verification result: 0 error(s); 0 warning(s); 4 fix(es); 0 row(s); time: 0h:0m:3s
Now in test 21(Row Count/Dumpster Count) of total 21 tests; 100% complete.
Databases for server mailserver:
Only databases marked as Offline can be checked
Index Status Database-Name
Storage Group Name: First Storage Group
1 Offline Mailbox Store (MAILSERVER)
2 Online Public Folder Store (MAILSERVER)
Enter a number to select a database or press Return to exit.
1
You have selected First Storage Group / Mailbox Store (MAILSERVER).
Continue?(Y/N)y
Test Categorization Tables result: 0 error(s); 0 warning(s); 0 fix(es); 0 row(s); time: 0h:0m:1s
Test Restriction Tables result: 0 error(s); 0 warning(s); 0 fix(es); 0 row(s); time: 0h:0m:1s
Test Search Folder Links result: 0 error(s); 0 warning(s); 0 fix(es); 0 row(s);time: 0h:0m:0s
Test Global result: 0 error(s); 0 warning(s); 0 fix(es); 1 row(s); time: 0h:0m:0s
Test Delivered To result: 0 error(s); 0 warning(s); 0 fix(es); 3 row(s); time: 0h:0m:0s
Test Search Queue result: 0 error(s); 0 warning(s); 0 fix(es); 0 row(s); time: 0h:0m:0s
Test Timed Events result: 0 error(s); 0 warning(s); 0 fix(es); 0 row(s); time: 0h:0m:0s
Test reference table construction result: 0 error(s); 0 warning(s); 0 fix(es); 0 row(s); time: 0h:0m:23s
Test Folder result: 0 error(s); 0 warning(s); 6 fix(es); 430 row(s); time: 0h:1m:14s
Test Deleted Folders result: 0 error(s); 0 warning(s); 0 fix(es); 0 row(s); time: 0h:0m:0s
Test Message result: 0 error(s); 6 warning(s); 4 fix(es); 17021 row(s); time: 0h:0m:21s
Test Attachment result: 0 error(s); 0 warning(s); 0 fix(es); 9217 row(s); time:0h:0m:2s
Test Mailbox result: 0 error(s); 0 warning(s); 0 fix(es); 13 row(s); time: 0h:0m:0s
Test Receive Folder result: 0 error(s); 0 warning(s); 0 fix(es); 50 row(s); time: 0h:0m:0s
Test Oof History result: 0 error(s); 0 warning(s); 0 fix(es); 0 row(s); time: 0h:0m:0s
Test Per-User Read result: 0 error(s); 0 warning(s); 0 fix(es); 0 row(s); time:0h:0m:0s
Test special folders result: 0 error(s); 0 warning(s); 0 fix(es); 0 row(s); time: 0h:0m:0s
Test Message Tombstone result: 0 error(s); 0 warning(s); 0 fix(es); 3 row(s); time: 0h:0m:0s
Test Folder Tombstone result: 0 error(s); 0 warning(s); 0 fix(es); 0 row(s); time: 0h:0m:0s
Test reference count verification result: 0 error(s); 0 warning(s); 4 fix(es); 0 row(s); time: 0h:0m:3s
Now in test 21(Row Count/Dumpster Count) of total 21 tests; 100% complete.
